Veneer Standard Specification Guidelines

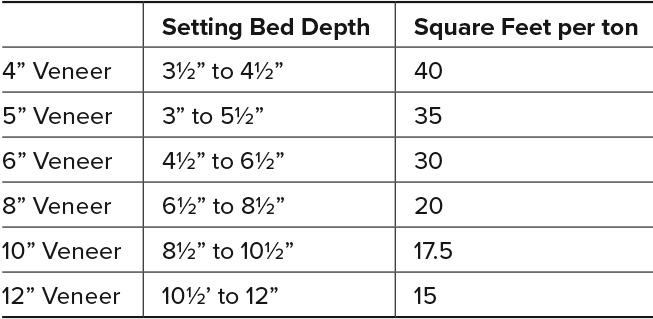

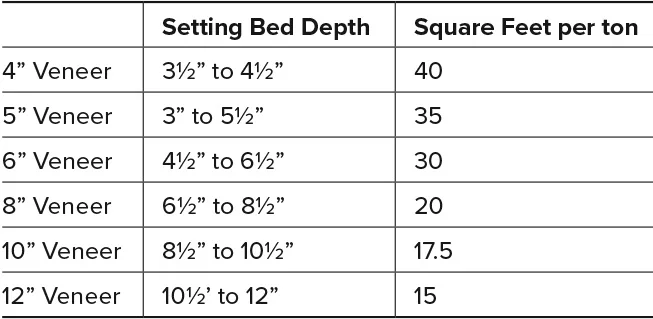

1. SEtting
   bed DEPTHS



2. HEIGHTS

Bar: 1½” to 4½”
Block: 4½” to 12”


3. LENGTHS

A typical minimum length of 2” greater than the setting bed depth. (ex: for 4”deep veneer a minimum length of 6”)


4. FACE SURFACES



COLOR: Natural faces are blends of gray, deep blue, gunmetal, rust, browns, and tans. Split faces are deep blue/gray.
TEXTURE: Profile is 0 to +1 ½”
(predominantly ½” to 1”) from arris unless trimmed by mason.



OPTIONS FOR VARIATIONS TO VENEER
The possibilities are numerous and depend upon the style desired. Some typical variations are noted below which co-inside with the “run” of the geology of the Alcove quarry.

PATTERN

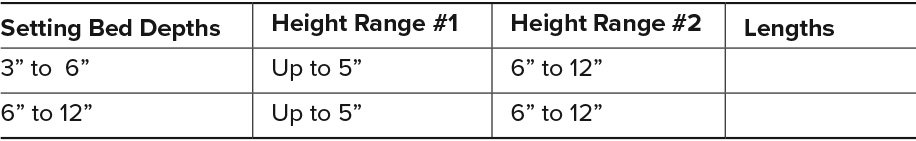

Long Bar may be mixed with 4” and 6” Alcove Ashler Veneer products for a long linear pattern. Rusticated faces from plumb would be necessary to incorporate long bars into a veneer wall, unless the backs of each stone were sawn off. Long bars are all natural faced, and sorted into two setting bed depths, and two height ranges, and three length categories; as shown below:



TEXTURE
Indian Fields: <1> to 1 ½” from arris, with rustic faces and some horizontal veining.

COLOR
Antique (split faces only): Light blue/gray with brown rim



Veneer products are sorted by type and palletized on 3000-pound pallets.
